We are one of the leading suppliers of

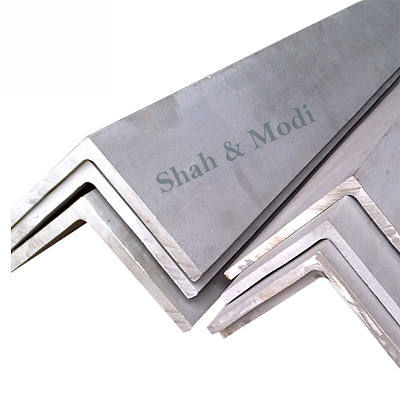

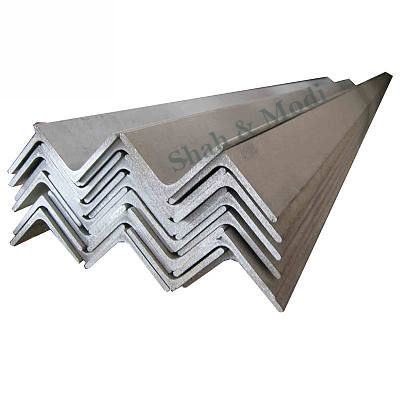

Mild Steel Angle Bars in the market. Our high quality mild steel angle bar
is uniquely designed to meet various industrial applications. Made up of
superlative raw materials, our Angle Bars are used in Machine Tools,
Scaffolding and Auto Parts Industry in all over India. Our Angle Bars have
high tensile strength that helps to attain robust construction. We provide
quality angle bars at the most economical prices and according to customer
specifications.MS Angle is commonly used in construction and engineering
projects to provide structural support and stability. It is used in the
fabrication of frames, brackets, beams, columns, and other load-bearing
structures.MS Angle is made from mild steel, which offers sufficient
strength and durability for various applications. It can withstand heavy
loads and forces without significant deformation or failure.
We also deals in SAIL | VIZAG | JINDAL | TATA.
We are an Authorized Dealer, Supplier, Provider, Stockist, Trader, and Wholesaler in Mumbai, Navi Mumbai, Thane, and across India.
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 25 x 25 x 3 | 1.10 | 0.30 |
| 25 x 25 x 4.5 | 1.60 | 0.49 |
| 25 x 25 x 5 | 1.80 | 0.50 |
| 25 x 25 x 6 | 2.10 | 0.60 |
| 30 x 30 x 3 | 1.40 | 0.40 |
| 35 x 35 x 3 | 1.60 | 0.50 |
| 35 x 35 x 4 | 2.10 | 0.60 |
| 35 x 35 x 5 | 2.60 | 0.80 |
| 37 x 37 x 3 | 1.70 | 0.50 |
| 40 X 40 X 3 | 1.80 | 0.055 |
| 40 x 40 x 4 | 2.40 | 0.70 |
| 40 x 40 x 5 | 3.00 | 0.90 |
| 40 x 40 x 6 | 3.50 | 1.10 |
| 45 x 45 x 4 | 2.70 | 0.80 |
| 45 x 45 x 5 | 3.40 | 1.00 |
| 45 x 45 x 6 | 4.00 | 1.22 |
| 50 x 50 x 3 | 2.30 | 0.70 |
| 50 x 50 x 4 | 3.00 | 0.90 |
| 50 x 50 x 5 | 3.80 | 1.20 |
| 50 x 50 x 6 | 4.50 | 1.40 |
| 50 x 50 x 8 | 5.84 | 1.78 |
| 55 x 55 x 4 | 3.30 | 1.00 |
| 55 x 55 x 5 | 4.10 | 1.30 |
| 60 x 60 x 4 | 3.70 | 1.10 |
| 60 x 60 x 5 | 4.50 | 1.40 |
| 60 x 60 x 6 | 5.40 | 1.64 |
| 65 x 65 x 4 | 4.00 | 1.20 |
| 65 x 65 x 5 | 4.90 | 1.50 |
| 65 x 65 x 6 | 5.80 | 1.80 |
| 65 x 65 x 8 | 7.70 | 2.40 |
| 65 x 65 x 10 | 9.40 | 2.90 |
| 65 x 65 x 12 | 11.80 | 3.60 |
| 70 x 70 x 7 | 7.38 | 2.25 |
| 75 x 75 x 5 | 5.70 | 1.70 |
| 75 x 75 x 6 | 6.80 | 2.10 |
| 75 x 75 x 8 | 8.90 | 2.70 |
| 75 x 75 x 10 | 11.0 | 3.40 |
| 75 x 75 x 12 | 13.1 | 4.00 |
| 80 x 80 x 6 | 7.20 | 2.19 |
| 80 x 80 x 7 | 7.90 | 2.90 |
| 80 x 80 x 8 | 9.60 | 2.90 |
| 90 x 90 x 6 | 8.20 | 2.50 |
| 90 x 90 x 7 | 9.50 | 2.90 |
| 90 x 90 x 8 | 10.80 | 3.10 |
| 90 x 90 x 10 | 13.40 | 4.10 |
| 98 x 98 x 9.5 | 13.09 | 3.99 |
| 100 x 100 x 6 | 9.20 | 2.80 |
| 100 x 100 x7 | 10.7 | 3.30 |
| 100 x 100 x 8 | 12.10 | 3.70 |
| 100 x 100 x 10 | 14.90 | 4.50 |
| 100 x 100 x 12 | 17.70 | 5.40 |
| 110 x 110 x 8 | 13.40 | 4.08 |
| 110 x 110 x10 | 16.50 | 5.03 |
| 110 x 110 x 12 | 19.6 | 5.97 |
| 130 x 130 x 8 | 15.9 | 4.85 |
| 130 x 130 x 10 | 19.7 | 6.01 |
| 130 x 130 x 12 | 23.4 | 7.13 |
| MS Angle Sizes and Weights | ||
| Size (in mm) | Weight (in Kg/Meter) | Weight (in Kg/Feet) |
| MS Angle 19x19x3 | 0.860 | 0.262 |
| MS Angle 20x20x3 | 0.900 | 0.274 |
| MS Angle 23x23x3 | 1.046 | 0.319 |
| MS Angle 25x25x3 | 1.099 | 0.335 |
| MS Angle 25x25x5 | 1.798 | 0.548 |
| MS Angle 30x30x3 | 1.400 | 0.426 |
| MS Angle 30x30x5 | 2.600 | 0.792 |
| MS Angle 31x31x3 | 1.280 | 0.390 |
| MS Angle 35x35x5 | 2.599 | 0.792 |
| MS Angle 37x37x3 | 1.700 | 0.518 |
| MS Angle 38x38x3 | 1.850 | 0.564 |
| MS Angle 40x40x3 | 1.798 | 0.548 |
| MS Angle 40x40x5 | 3.002 | 0.915 |
| MS Angle 40x40x6 | 3.498 | 1.066 |
| MS Angle 45x45x5 | 3.380 | 1.030 |
| MS Angle 50x50x5 | 3.799 | 1.158 |
| MS Angle 50x50x6 | 4.502 | 1.372 |
| MS Angle 60x60x5 | 4.501 | 1.372 |
| MS Angle 60x60x6 | 5.399 | 1.645 |
| MS Angle 60x60x8 | 7.000 | 2.133 |
| MS Angle 65x65x5 | 4.900 | 1.493 |
| MS Angle 65x65x6 | 5.798 | 1.767 |
| MS Angle 65x65x8 | 7.697 | 2.346 |
| MS Angle 65x65x10 | 9.399 | 2.864 |
| MS Angle 70x70x5 | 5.300 | 1.615 |
| MS Angle 70x70x5 | 6.300 | 1.920 |
| MS Angle 75x75x5 | 5.700 | 1.737 |
| MS Angle 75x75x6 | 6.800 | 2.072 |
| MS Angle 75x75x8 | 8.900 | 2.712 |
| MS Angle 75x75x10 | 11.000 | 3.352 |
| MS Angle 75x75x12 | 12.200 | 3.718 |
| MS Angle 80x80x6 | 7.300 | 2.224 |
| MS Angle 80x80x8 | 9.600 | 2.925 |
| MS Angle 80x80x10 | 11.800 | 3.596 |
| MS Angle 90x90x6 | 8.200 | 2.499 |
| MS Angle 90x90x8 | 10.801 | 3.292 |
| MS Angle 90x90x10 | 13.400 | 4.094 |
| MS Angle 90x90x12 | 15.799 | 4.815 |
| MS Angle 100x100x6 | 9.100 | 2.804 |
| MS Angle 100x100x8 | 12.097 | 3.687 |
| MS Angle 100x100x10 | 14.912 | 4.545 |
| MS Angle 100x100x12 | 17.701 | 5.395 |
| MS Angle 110x110x8 | 13.400 | 4.084 |
| MS Angle 110x110x10 | 16.499 | 5.028 |
| MS Angle 110x110x12 | 19.600 | 5.974 |
| MS Angle 130x130x8 | 15.800 | 4.815 |
| MS Angle 130x130x10 | 19.699 | 6.004 |
| MS Angle 130x130x12 | 23.300 | 7.101 |
| MS Angle 150x150x10 | 22.803 | 6.950 |
| MS Angle 150x150x12 | 27.199 | 8.290 |
| MS Angle 150x150x16 | 35.800 | 10.911 |
| MS Angle 150x150x20 | 44.100 | 10.911 |
